Jacobs Ladder

Home Up

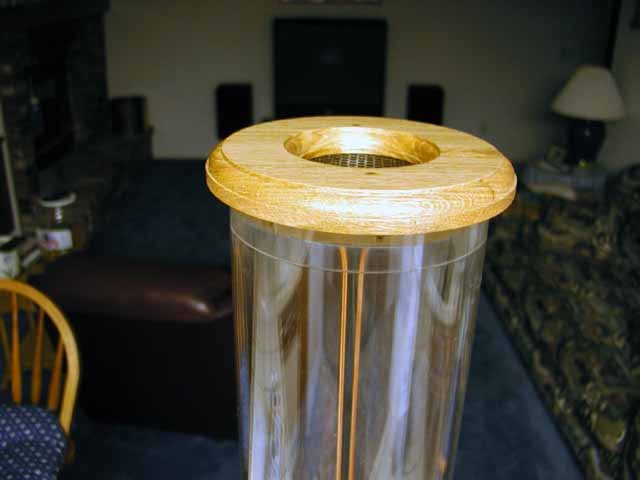

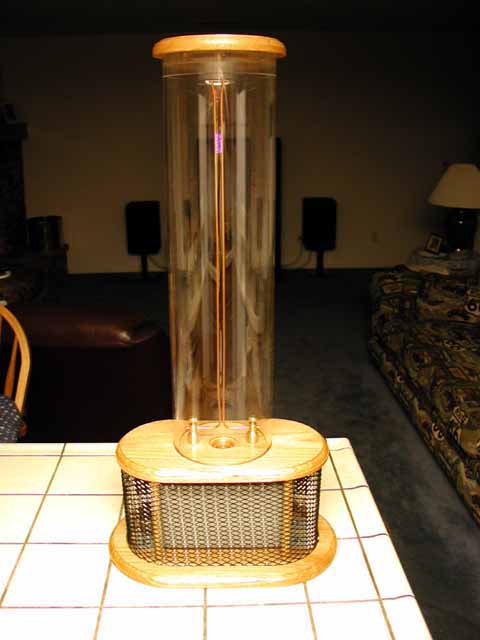

Here is the finished product

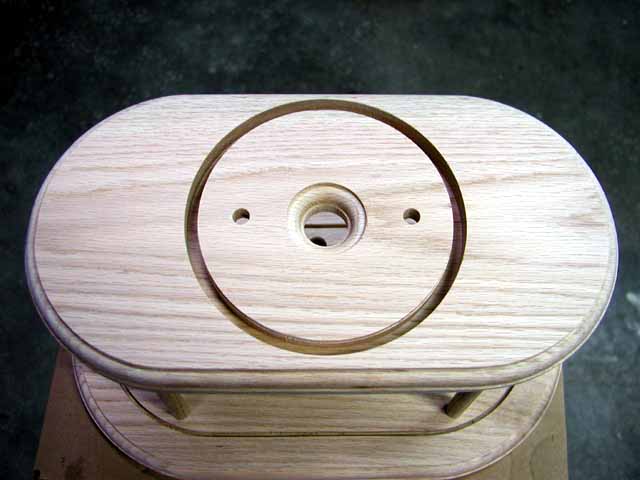

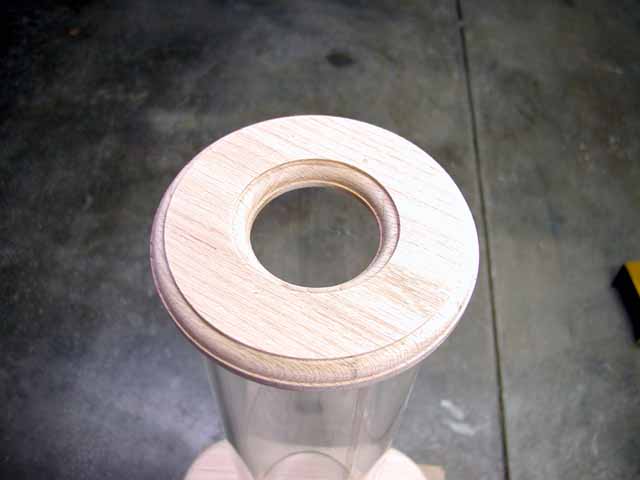

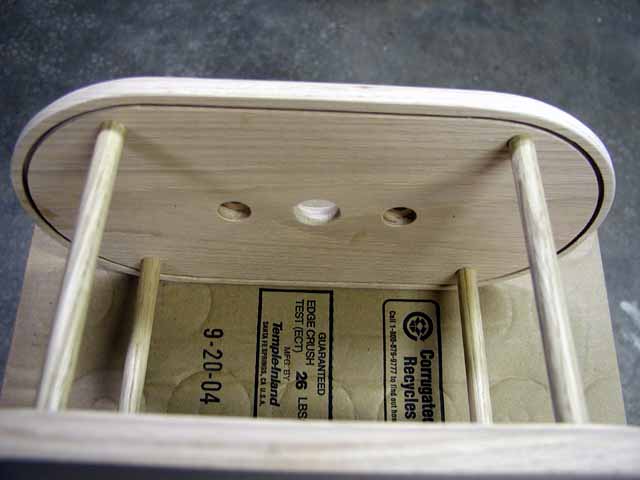

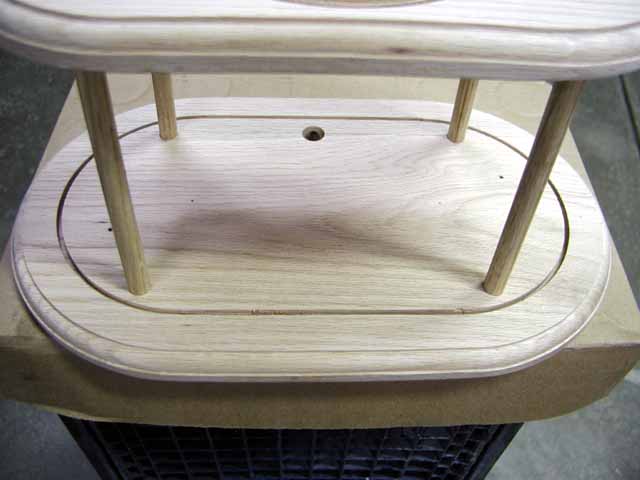

The wood is all red oak which was machined on my vertical mill (using router bits in place of end-mills)

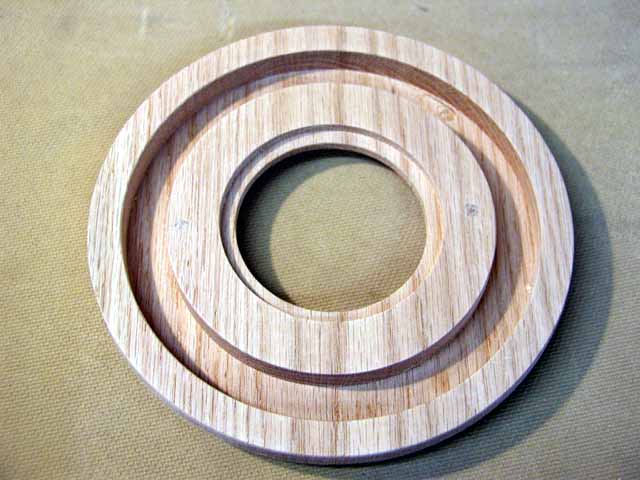

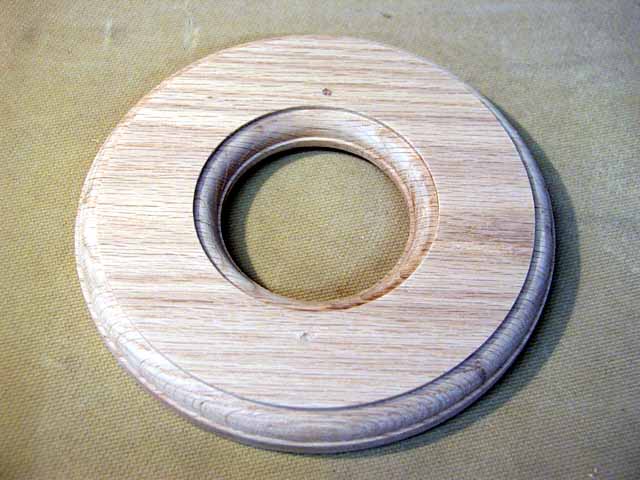

And on my metal lathe

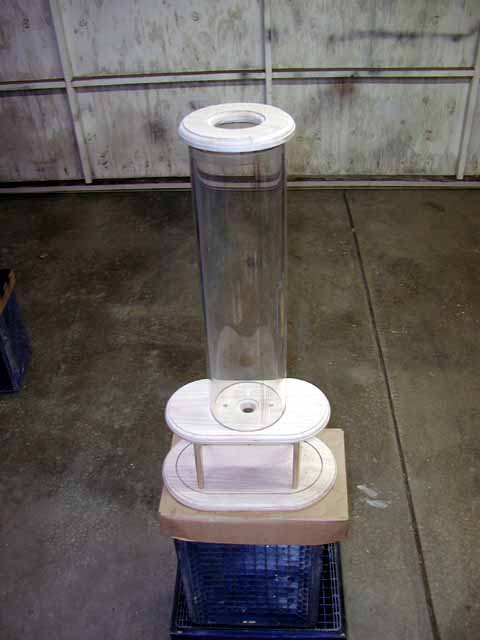

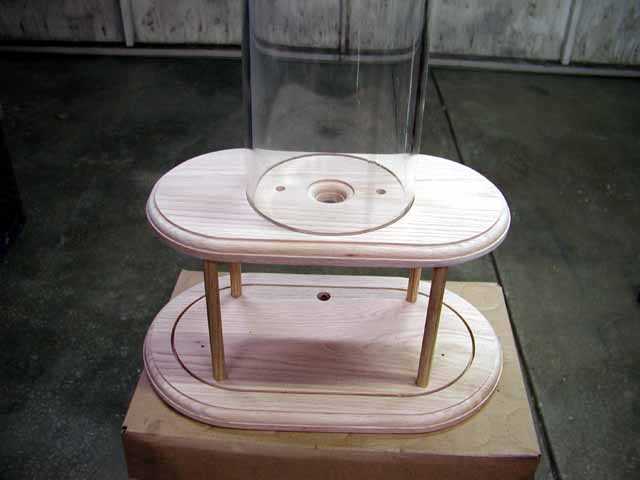

Trial fitting all the peices

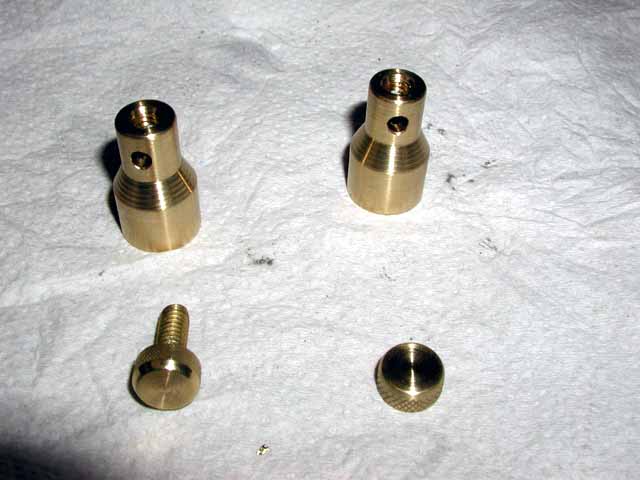

Brass terminals and screws I turned from bar stock

The 15,000 volt neon sign transformer

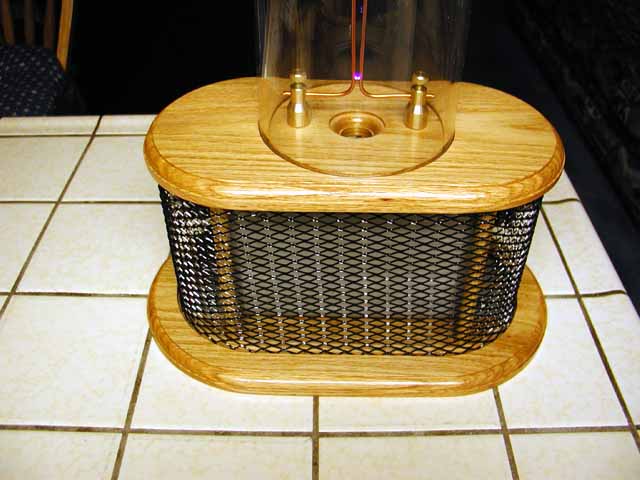

Final assembly and adjustment

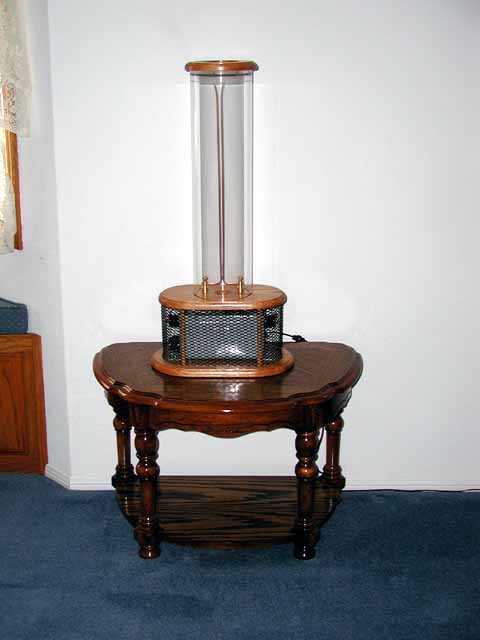

Sitting on the $5.00 table Claudia found for me at the swap-meet (after refinishing)
